Ultrasonic Cleaning Machine

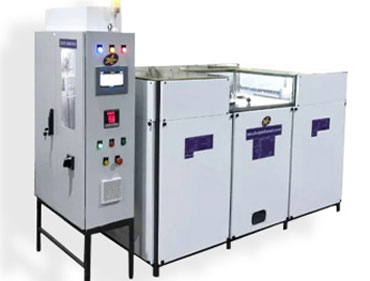

Ultrasonic single chamber multi-process:
Ultrasonic single chamber multi-process Specifications:
| Tank Dimensions | 500-2000 L (Customizable) |
|---|---|
| Ultrasonic Power | 1000-5000 Watts |
| Ultrasonic Frequency | 20-40 kHz |
| Process Stages | Pre-cleaning, Ultrasonic, Rinsing, Drying |
| Temperature Range | Ambient to 80°C |
| Heating System | Electric/Steam Heating |
| Filtration System | Multi-stage with Filter Bags/Cartridges |
| Control System | PLC with HMI Touch Screen |
| Construction Material | SS304/SS316 |
| Power Supply | 415V/50Hz, 3 Phase |

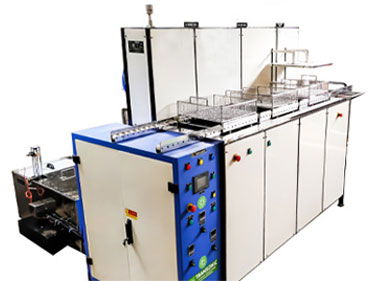

Ultrasonic multistage single head machine:
Ultrasonic multistage single head machine Specifications:
| Tank Dimensions | 500-2000 L (Customizable) |
|---|---|
| Ultrasonic Power | 1000-5000 Watts |
| Ultrasonic Frequency | 20-40 kHz |
| Process Stages | Pre-cleaning, Ultrasonic, Rinsing, Drying |
| Temperature Range | Ambient to 80°C |
| Heating System | Electric/Steam Heating |
| Filtration System | Multi-stage with Filter Bags/Cartridges |
| Control System | PLC with HMI Touch Screen |
| Construction Material | SS304/SS316 |
| Power Supply | 415V/50Hz, 3 Phase |
Conveyorized type equal indexing machine:
Conveyorized type equal indexing machine Specifications:
| Tank Material | SS304/SS316 |
|---|---|
| Tank Capacity | 50-500 Liters |
| Number of Tanks | 3-8 Tanks |
| Ultrasonic Power | 600W - 3000W per tank |
| Ultrasonic Frequency | 20-40 kHz |
| Heating Capacity | 3-9 kW per tank |
| Temperature Range | Ambient to 80°C |
| Control System | PLC with HMI Touch Screen |
| Lifting System | Pneumatic/Electric |
| Power Supply | 415V/50Hz, 3 Phase |
